Louver Doors

Louvers Page...

All of our louvers are made from West Coast Red Alder.
Other species of wood are available by special order.
    • Oak    • Basswood/Aspen    • Maple    • Mahogany

Available for 1-3/4" and 1-3/8" door thickness.


Chevron Louver

Chevron Louvers

Regular Louvers - With Frame

Chevron Louvers provide air movement while maintaining privacy in both directions.

Cut Sheet View - Chevron Louver in Standard Frame

Approximately 35% cubic inch free airspace.
Hole in door should be 1" larger than size ordered.

Note: Widths 20" and greater come standard with center vertical mullion, or without by special order.


Flush Louvers - No Frame

Click For Larger Image
Louver pad with quarter round for 1-3/8" thick door.Louver pad with quarter round for 1-3/4" thick door.
Cut Sheet View - Chevron Flush Louver - No Frame

Pads only with quarter-round.

Quarter-round Moulding (1/2"X1/4") furnished with louvers.

Provide OUTSIDE measurement for louver when ordering.

The Louver Pad will be made to the exact OSM ordered.


Flush-Framed Louvers

Cut Sheet View - Flush-Frame Louver

These are substitute for flush louvers and are used on larger sizes and/or pocket doors.

There are no screw holes in flush-framed louvers.

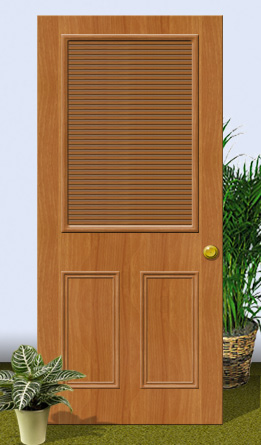

Flat Slat Louver

Flat-Slat Louvers

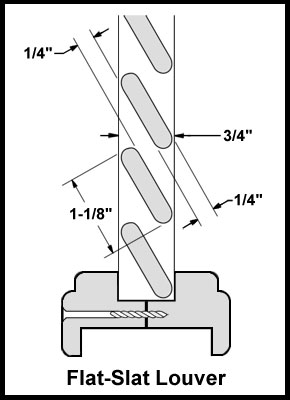

Cut Sheet View - Flat Slat Louver

Approximately 50% cubic inch free airspace with less resistance than the Chevron type louver.

Hole in door should be 1" larger than size ordered.

Vertical mullions only available on flat-slat louvers with widths of 25" or greater.


Privacy Flat Slat Louver

Privacy Louvers

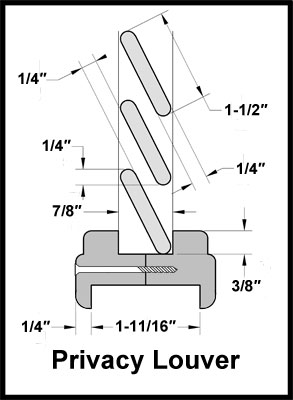

Cut Sheet View - Privacy Louver

Great for use where privacy is needed (i.e. dressing rooms, restrooms, closets, etc.)

This special Privacy Flat-Slat Louver is only available for 1-3/4" door thickness.

Hole in door should be 1" larger than size ordered.

Vertical mullions only available on flat-slat louvers with widths of 25" or greater.


Wide Slat Louver

Wide Slat Louvers

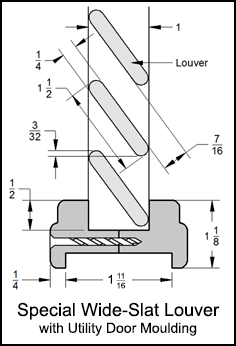

Cut Sheet View - Wide Slat Louver

Our Special Wide Slat Louvers offer approximately 60% cubic inch free airspace with much less resistance than the Chevron type louver.

Hole in door should be 1" larger than size ordered.

Vertical mullions only available on flat-slat louvers with widths of 25" or greater.

This special Wide Slat Louver is only available for 1-3/4" door thickness.


Plantation Slat Louver

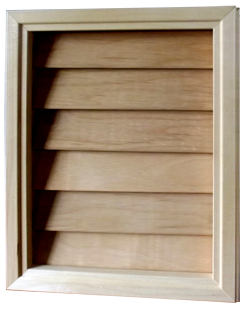

Plantation Louvers

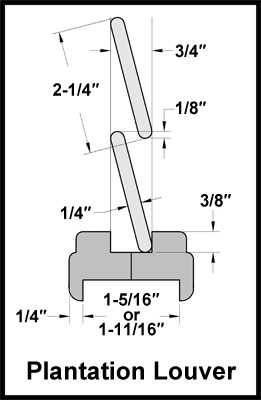

Cut Sheet View - Plantation Louver

Our newly created Plantation Style Louvers offer a contemporary look with
2" visible slats.

Plantation Louvers provide up to approximately 60% cubic free air space.

Hole in door should be 1" larger than size ordered.

Vertical mullions only available on Plantation Style Louvers with widths of
25" or greater.

Plantation Style Louvers are available for both 1-3/8" and 1-3/4" door thickness.


False Louver

False Louvers

Cut Sheet View - False Louver

A product to enhance a plain door to make it more appealing to the eye.

Fits directly on the surface of the door. Solid wood with a "Louver Look".

False Louvers can be applied to doors with glue or screws.

Custom sizes available upon request.

Size ordered wil be outside measurement.

Profile drawing of Frame SurroundProfile drawing of False Louver Slat

Flat-Slat Deluxe Louver

Flat-Slat Deluxe Louver

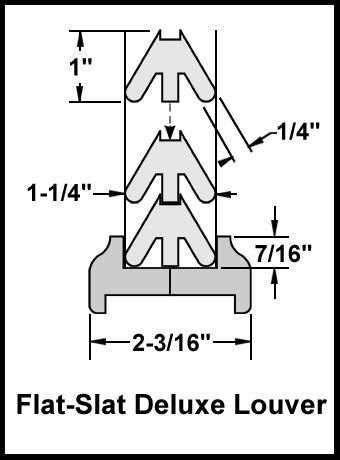

Cut Sheet View - Flat-Slat Deluxe Louver

Flat-Slat Deluxe Louvers are popular in tropical regions and offer an appealing flat slat louver look on the interior as well as the exterior of the louver insert.

The Architectural design of the Flat-Slat Deluxe Louvers creates a
sound proof - sight proof louver.

Hole in door should be 1" larger than size ordered.

Flat-Slat Deluxe Louvers are only available in 1-3/4" door thickness.


Louver Air Space Calculator

Please choose type of calculation from list.
Your answer will be shown below.
I have:
Width:   inches
Height:   inches
Air Space:   square inches
Calculating: Please select above
Chevron:
Flat-Slat:
Wide-Slat:
Privacy-Slat:
Plantation:




Please Note:

This calculator is designed to provide our customers an approximate amount of square inch air space derived from a percentage of volume calculation. Please note that Beechcraft Products Inc. is not responsible for C.F.M. flow rate as our louvers have not been HVAC tested. This is only intended and offered as a guide.
